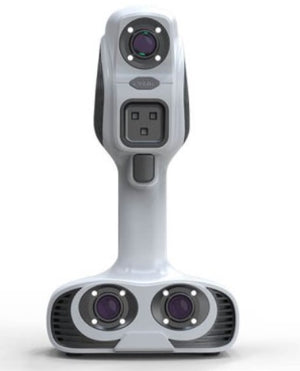

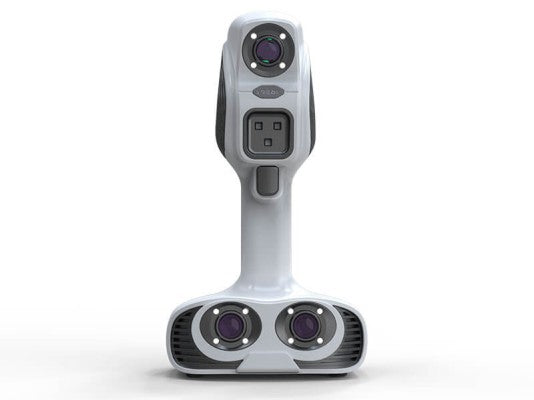

iReal 2E 3D body scanner maximizes the performance in depth of field, scanning area, algorithm, texture reproduction and detail capturing, specially designed for medium to large-sized objects and human body 3D scanning.
iReal 2E 3D body scanner adopts the infrared VCSEL structured light technology to bring you the safest and most comfortable 3D scanning experience. Without attaching markers, a quick texture capturing and geometry acquisition can be achieved. Mixed alignment modes meet various scanning situations.
With the advantages of cutting-edge algorithm functions, easy-to-use software, ergonomic design, portable and durable, iReal 2E 3D body scanner creates an efficient, accurate and rich texture 3D color measurement solution.
iReal 2S adopts infrared light technology, making it totally safe and comfortable for body scan and face scan, especially capturing 3D data of human eyes without uncomfortableness.
Hair scanning is always a difficulty for normal color 3D scanners, but iReal 2S has a strong ability in hair acquisition.
Deeply fulfill the visual experience of texture capturing in various fields.
When object has continuous and irregular textures or geometric features, it can be scanned without any markers base on texture alignment and geometric alignment.
Scanning object without continuous or irregular textures or geometric features, iReal 2S combines texture/geometric/markers alignments with few markers to finish it.
| Technical Specifications iReal2E | |
|---|---|
| Type | iReal 2E |
| Light source | Infrared VCSEL structured light |
| Visibility | Invisible |
| Safety | CLASSІ (eye-safe) |
| Technology | Infrared linear-array structured light |
| Color reproduction | 24 bit |
| Alignment mode without markers | Texture/feature/mixed alignments |
| Human body scanning | Invisible light/hair/dark environment scanning; automatically remove the layers of body shaking |
| Optimal scanning distance | 300 mm–500 mm |
| Effective working range | 280 mm–1000 mm |
| Scanning area | Up to 580 mm x 550 mm |
| Measurement rate | Up to 1,500,000 points/s |
| Point distance | 0.200 mm–3 mm |
| Basic Accuracy | Up to 0.100 mm |
| Alignment accuracy① | Up to 0.300 mm/m |
| Output formats | OBJ, STL, PLY, ASC, SK |
| 3D printing | Support |
| Work temperature | 0–40℃ |
| Interface mode | USB 3.0 |
| Weight | 850 g |
| Dimensions | 140 mm × 94 mm × 258 mm |
| Configuration | 3 sets of invisible light sources; 3 camera groups; 3 sets of auxiliary lights |
