Name: Artec Metrology Kit
Brand: Rapid Scan 3D
Price: 27400.0 USD
Availability: InStock

Notify me when this product is available:

What is the Artec Metrology Kit?

A 3D optical coordinate measuring system for high-precision industrial applications – think deformation analysis, testing, inspection. The Metrology Kit is flexible enough to integrate into your workflow, delivers perfect results both in your workshop and outdoors, and is compatible with major software like Geomagic Control X and PolyWorks.

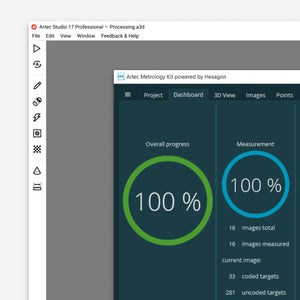

The Metrology Kit can operate as a standalone optical measurement solution, or as a referencing tool for even higher 3D scanning accuracy over distance. Using the Metrology Kit plugin, you get the entire 3D scanning + photogrammetry workflow right inside Artec Studio.

Inspection

Using a high-accuracy optical coordinate measuring system makes inspection of objects like aircraft components, ships, and wind turbines a reliable, straightforward process.

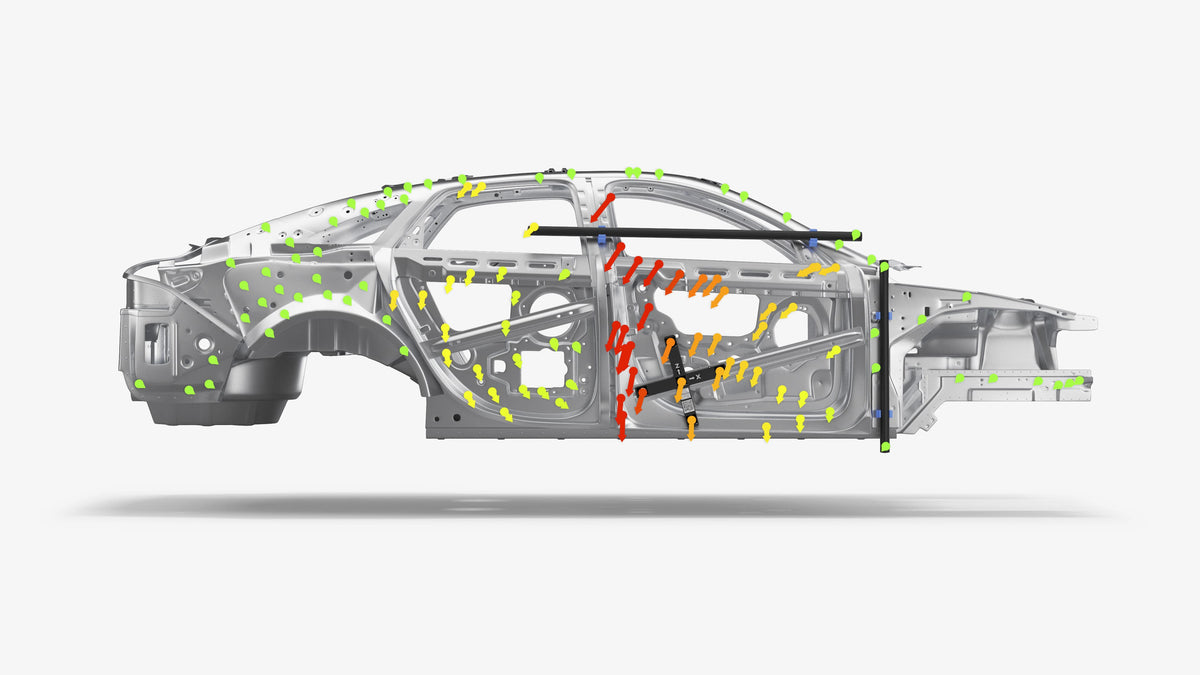

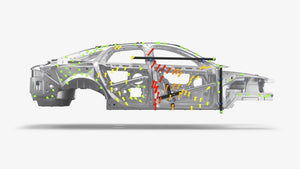

Deformation analysis

Use this optical measurement solution to analyze the deformation characteristics of materials under different environmental conditions and loads – processes where a short measuring time is crucial. The Metrology Kit is great for analyzing the geometrical changes of things like storage tanks, vehicle components, or design prototypes.

Deformation Analysis

Short measuring time

Work comfortably in demanding testing environments such as climate chambers, where very short acquisition times are crucial, but reliable precision and highly accurate datasets are non-negotiable.

Convenient workflow

The Metrology Kit’s simple workflow is especially important given the large number of measurement points typical in deformation analysis and extreme working conditions like high temperatures and humidity.

Portable and flexible

The Metrology Kit’s portability ensures ease of use when working in tight spaces often characteristic of climate chambers.

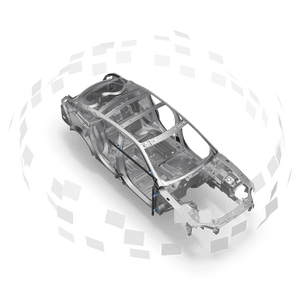

Referencing for 3D scanning

Combine the dense point cloud of a metrology 3D scanner with the high precision of the Kit’s optical measurements to expand the capabilities of small to medium-sized object scanners. You can have the best of both worlds obtaining high resolution on smaller elements within large objects while having them fully captured with minimal accumulated error and high volumetric accuracy.

Referencing for 3D scanning

Greater accuracy over distance

The Metrology Kit produces a point cloud with high volumetric accuracy that you can use as a reference to get great 3D scanning results over distance even when you’re not using a 3D scanner for metrology.

Simplified workflow

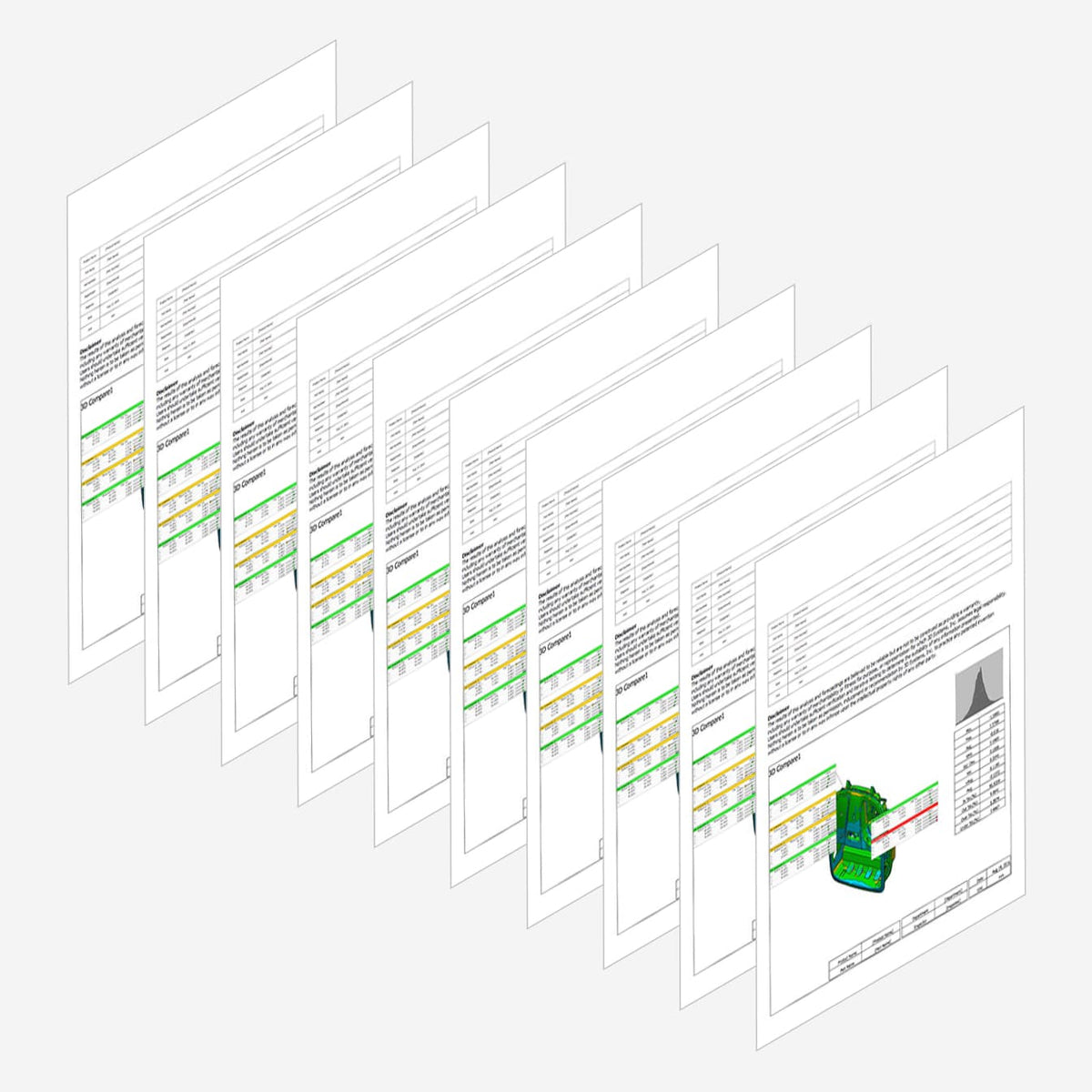

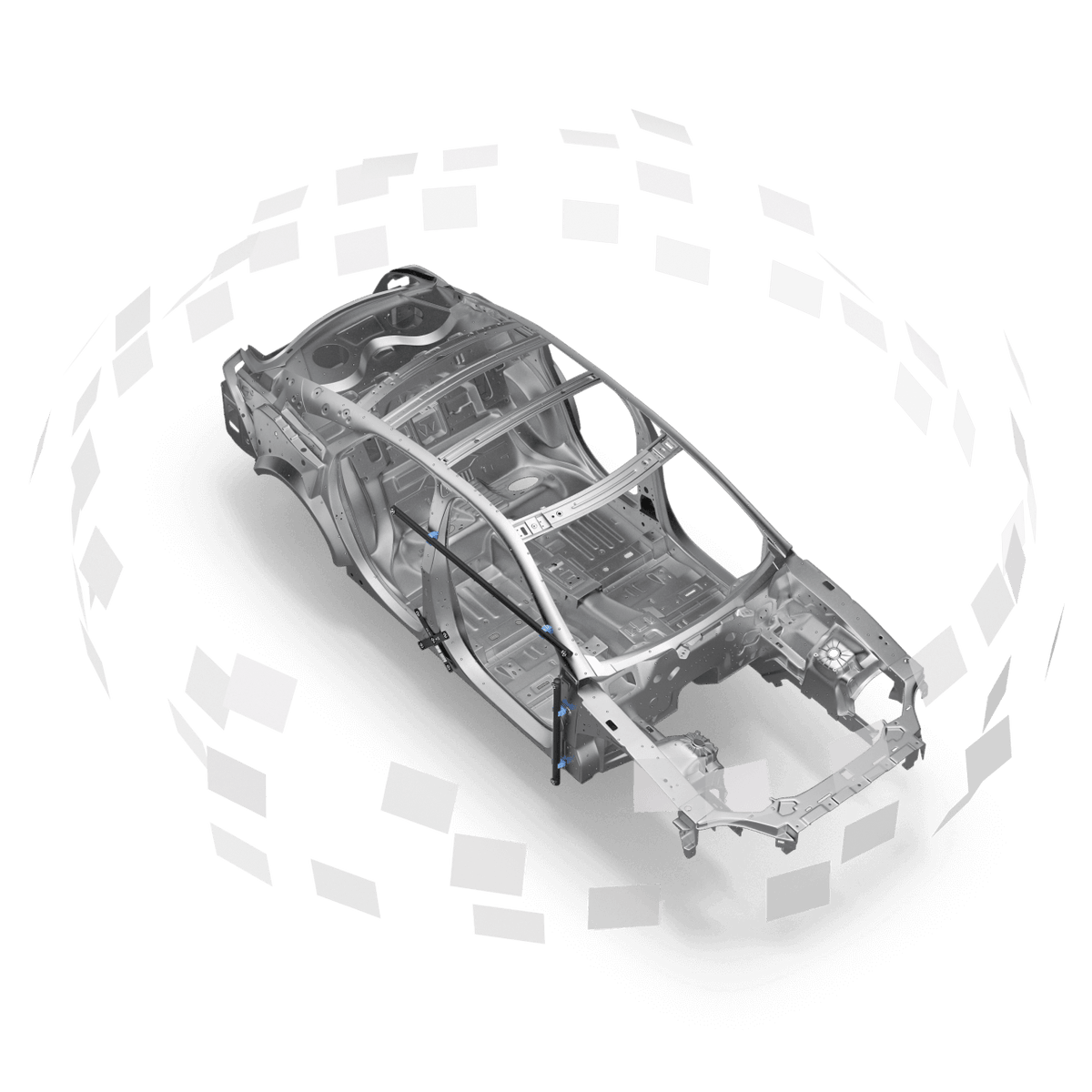

A complete, self-contained workflow from signalizing to reporting makes the measurement process seamless, and integrates the whole photogrammetry-complemented pipeline into one environment.

Increase the range of smaller scanners

Use scanners with a relatively small field of view to accurately capture much larger objects. This means you can capture small details while maintaining very high volumetric accuracy, up to 0.015 mm + 0.015 mm/m.

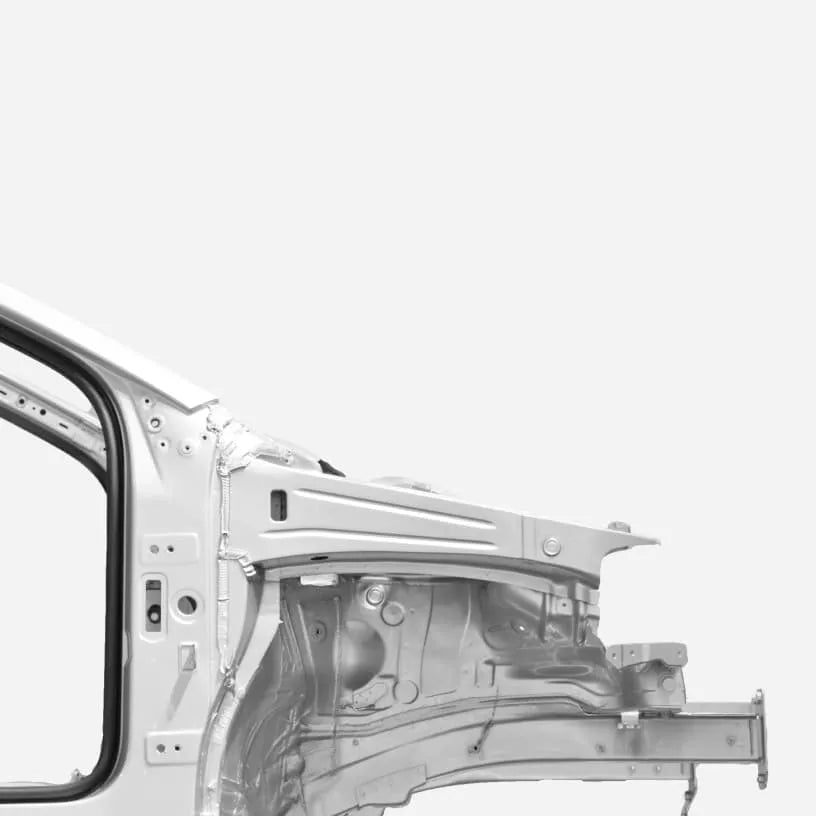

Automotive industry

A major car manufacturer in Germany used the Metrology Kit for quality control to analyze the positions of welding studs on every fourth chassis in a production line. The results were used to program the welding robot.

R&D

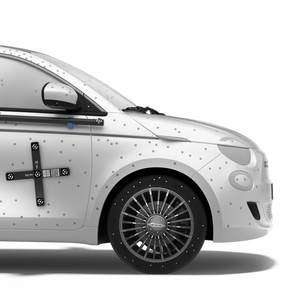

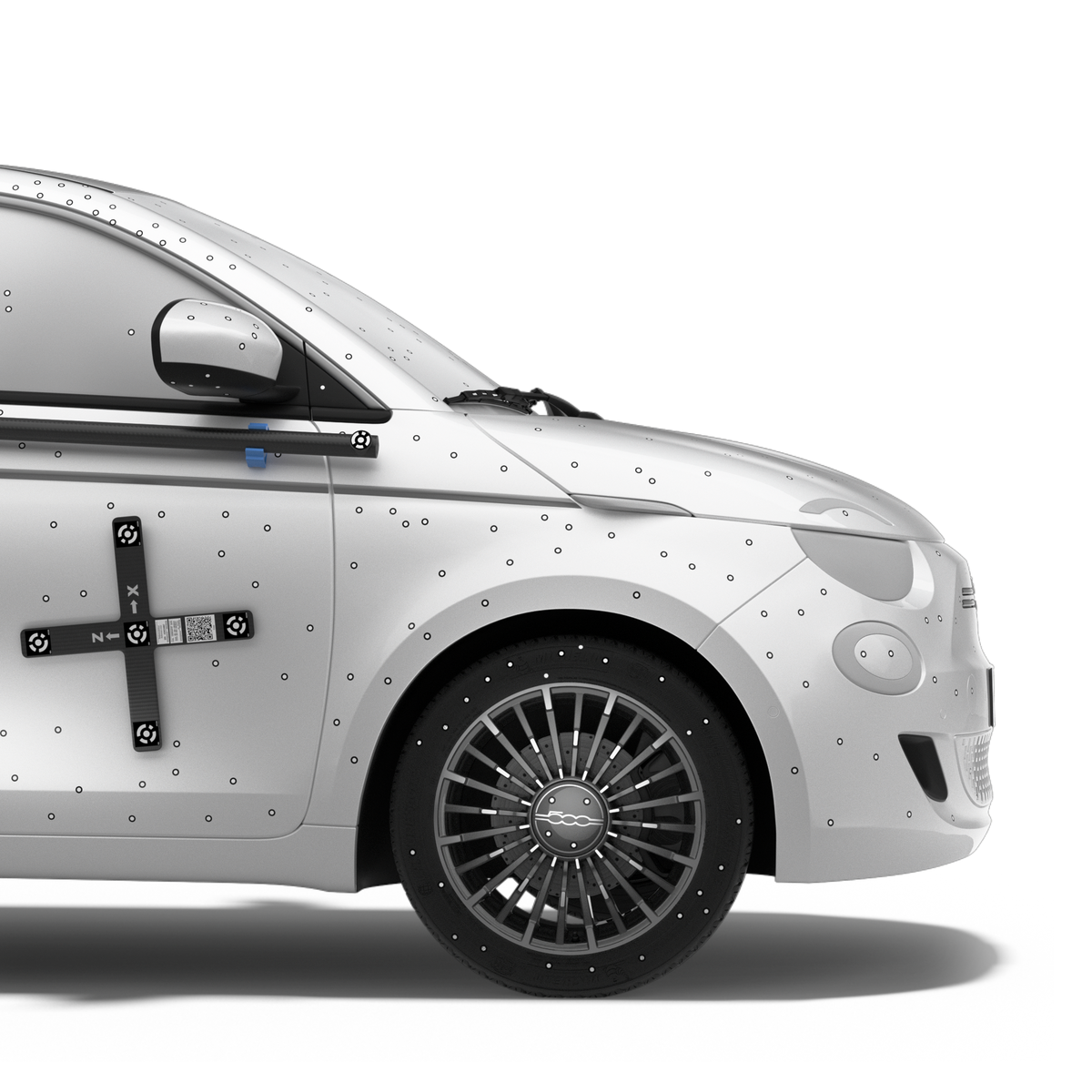

As part of tests and research for autonomous driving, major car manufacturers use the Metrology Kit to accurately determine the positions of sensors on a car body and correctly place them within the car’s coordinate system.

Aerospace

Organizations in astronomy, defense, and space in the UK, Germany, and Japan use the Metrology Kit for high-accuracy applications. Deformation analysis was done on the main and sub panel systems of this large satellite antenna tilted at various angles.

Get the best out of your Metrology Kit

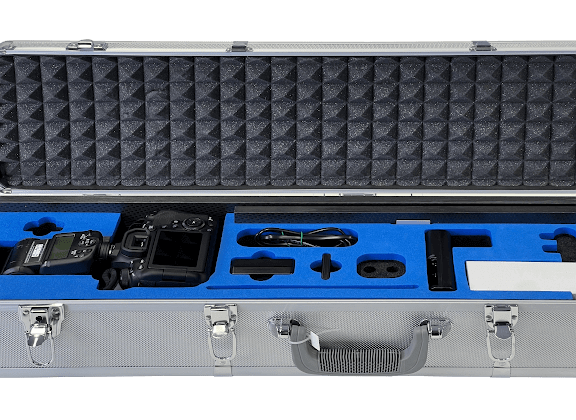

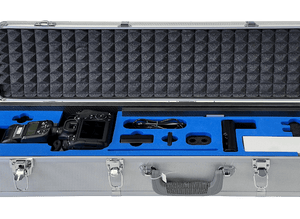

Entry version

Package includes:

20-megapixel digital camera
Point-based accuracy (RMS) up to 0.004 mm + 0.006 mm/m
Length measurement accuracy up to 0.025 mm + 0.025 mm/m

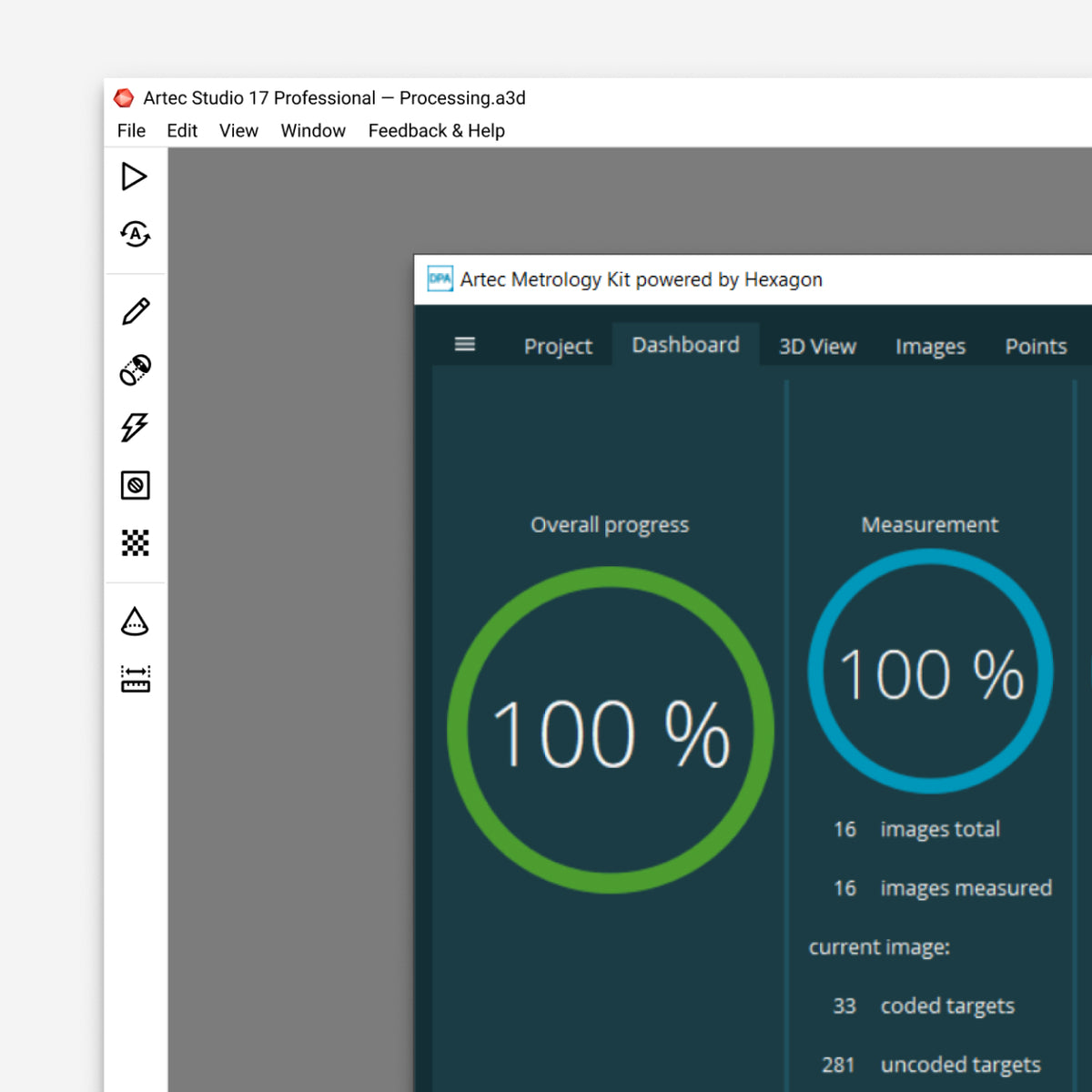

Metrology Kit plugin for Artec Studio
Adjustable camera settings
Basic range of measurement accessories: targets and scale bars

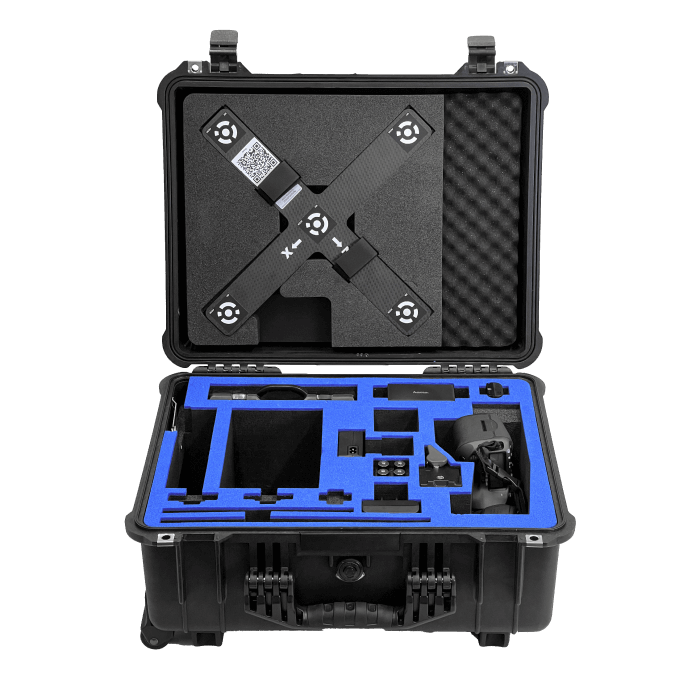

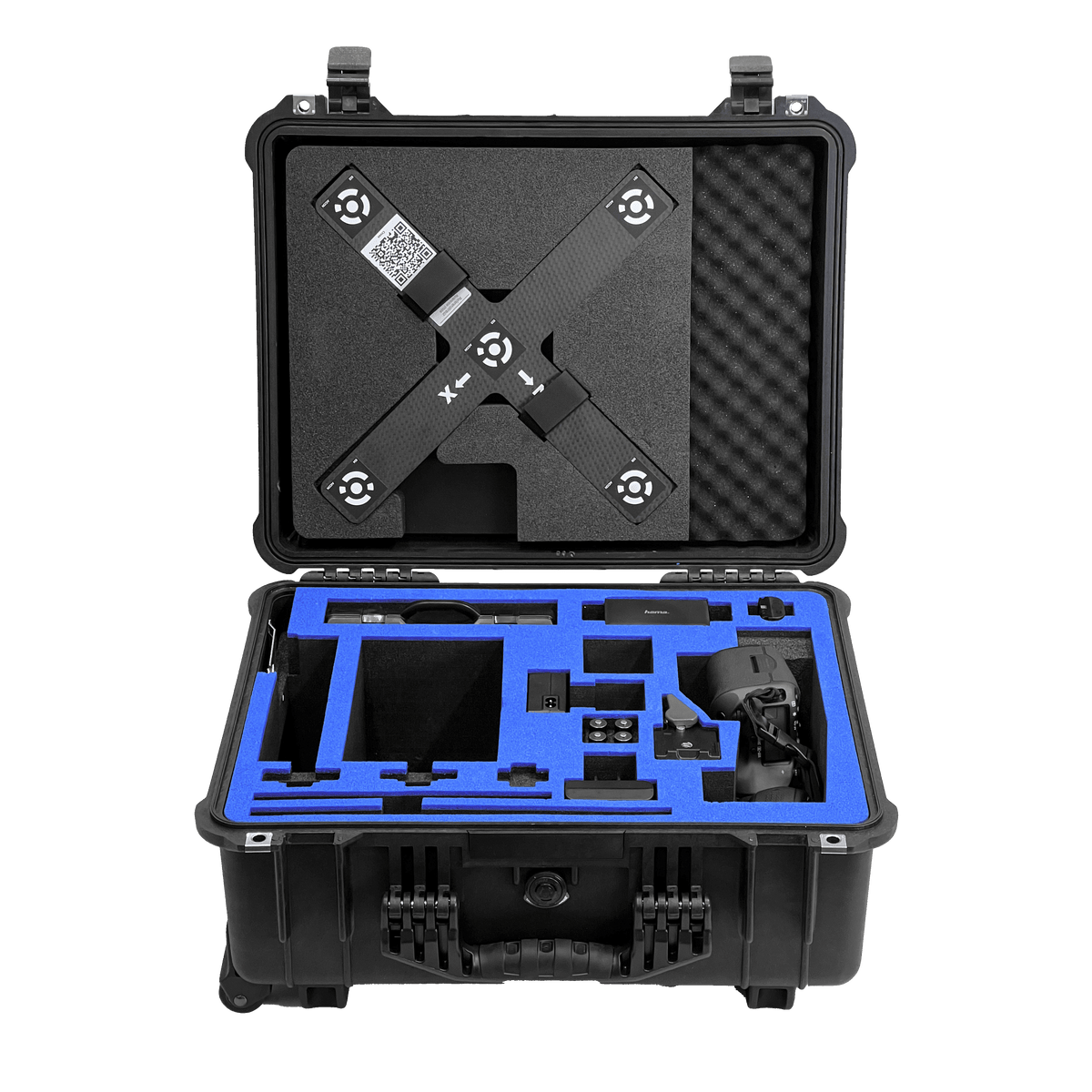

Professional version

Package includes:

30.3-megapixel digital camera
Point-based accuracy (RMS) up to 0.002 mm + 0.005 mm/m
Length measurement accuracy up to 0.015 mm + 0.015 mm/m
Metrology Kit plugin for Artec Studio
Adjustable camera settings
Separated reference cross and scale bar for larger and more complex parts

Technical	Eva	Eva Lite	Space Spider	Leo	Micro	Ray II	Metrology Kit Professional	Metrology Kit Entry
Scanner type	Handheld	Handheld	Handheld	Handheld	Desktop	Tripod	Mobile	Mobile
3D point accuracy , up to	0.1 mm	0.1 mm	0.05 mm	0.1 mm	0.01 mm	1.9 mm @10 m Angular 18" (0.87 mm @ 10 m)	0.002 mm + 0.005 mm/m (RMS) 0.003 mm + 0.007 mm/m (3 sigma)	0.004 mm + 0.006 mm/m (RMS) 0.005 m + 0.009 mm/m (3 sigma)
3D resolution , up to	0.2 mm	0.5 mm	0.1 mm	0.2 mm	0.029 mm	3 / 6 / 12 mm @ 10 m	30.3 megapixels (6720 × 4480)	20.2 megapixels (5472 × 3648)
3D accuracy over distance, up to	0.1 mm + 0.3 mm/m	0.1 mm + 0.3 mm/m	0.05 mm + 0.3 mm/m	0.1 mm + 0.3 mm/m	—	Range noise: 0.4 mm @ 10 m 0.5 mm @20 m	0.003 mm + 0.007 mm/m (3 sigma)	0.005 mm + 0.009 mm/m (3 sigma)
HD Mode	Yes	No	N/A	Yes	N/A	HDR: Automatic, 5 brackets	N/A	N/A
Hybrid geometry and texture tracking	Yes	No	Yes	Yes	N/A	N/A	Targets	Targets
Data processing algorithms	Geometry and texture based	Geometry based	Geometry and texture based	Geometry and texture based	Geometry based	Real time registration, Automatic removal of moving objects, Check & Adjust	__	__
Working distance	0.4 – 1 m	0.4 – 1 m	0.2 – 0.3 m	0.35 – 1.2 m	—	0.5 to 130 m	__	__
Volume capture zone	61,000 cm³	61,000 cm³	2,000 cm³	160,000 cm³	324 cm³	360 degrees	65 × 46°	__
Linear field of view, H×W @ closest range	214 × 148 mm	214 × 148 mm	90 × 70 mm	244 × 142 mm	—	__	__	__
Linear field of view, H×W @ furthest range	536 × 371 mm	536 × 371 mm	180 × 140 mm	838 × 488 mm	—	__	__	__
Angular field of view, H×W	30 × 21°	30 × 21°	30 × 21°	38.5 × 23°	—	__	__	__
Ability to capture texture	Yes	No	Yes	Yes	Yes	Yes	Yes	Yes
Texture resolution	1.3 mp	—	1.3 mp	2.3 mp	6.4 mp	36 mp	30.3 mp	20.2 mp
Colors	24 bpp	—	24 bpp	24 bpp	24 bpp	432 MPx raw data	30.3 megapixels (6720 × 4480)	20.2 megapixels (5472 × 3648)
3D reconstruction rate for real-time fusion, up to	16 fps	16 fps	7.5 fps	22 fps	—	__	__	__
3D reconstruction rate for 3D video recording, up to	16 fps	16 fps	7.5 fps	44 fps	—	__	__	__
3D reconstruction rate for 3D video streaming, up to	—	—	—	80 fps	—	__	Up to 8 images per second	Up to 4 images per second
Data acquisition speed, up to	18 mln points/s	2 mln points/s	1 mln points/s	35 mln points/s	1 mln points/s	Up to 2,000,000 pts/sec
3D exposure time	0.0002 s	0.0002 s	0.0002 s	0.0002 s	Customizable	__	__	__
2D exposure time	0.00035 s	0.00035 s	0.0002 s	0.0002 s	Customizable	__	__	__
3D light source	Flashbulb	Flashbulb	Blue LED	VCSEL	Blue LED	36 MP 3-camera system captures 432 MPx raw data for calibrated 360° × 300° spherical image	Canon EOS R	Canon EOS 6D
2D light source	White 12 LED array	White 12 LED array	White 6 LED array	White 12 LED array	RGB LED	LiDAR	White-light flash	White-light flash
Position sensors	—	—	—	Built-in 9 DoF inertial system	—	Visual Inertial System (VIS), Altimeter, compass, and Global Navigation Satellite System.
Display/touchscreen	USB streaming through external computer	USB streaming through external computer	USB streaming through external computer	Integrated 5.5" half HD, CTP. Optional Wi-Fi/Ethernet video streaming to external device	USB streaming through external computer	Onboard screen	__	__
Multi-core processing	On external computer	On external computer	On external computer	Embedded processors: NVIDIA® Jetson™ TX2 Quad-core ARM® Cortex®-A57 MPCore Processor NVIDIA Maxwell™ 1 TFLOPS GPU with 256 NVIDIA® CUDA® Cores	On external computer	On external computer	__	__
Interface	1 × USB 2.0, USB 3.0 compatible	1 × USB 2.0, USB 3.0 compatible	1 × USB 2.0, USB 3.0 compatible	Wi-Fi, Ethernet	USB 3.0	Wireless: Integrated wireless LAN (802.11 b/g/n)	__	__
Internal hard drive	—	—	—	512 GB SSD	—	AS256, 256 GB/USB 3.0 flash drive	__	__
Computer requirements	Visit the Artec Support Center for detailed hardware requirements.	Visit the Artec Support Center for detailed hardware requirements.	Visit the Artec Support Center for detailed hardware requirements.	Visit the Artec Support Center for detailed hardware requirements.	Visit the Artec Support Center for detailed hardware requirements.	Visit the Artec Support Center for detailed hardware requirements.	Visit the Artec Support Center for detailed hardware requirements.	Visit the Artec Support Center for detailed hardware requirements.
Supported OS	Windows 8.1, 10 (x64), Windows 11	Windows 8.1, 10 (x64), Windows 11	Windows 8.1, 10 (x64), Windows 11	Scanning: No computer required Data processing: Windows 8.1, 10 (x64), Windows 11	Windows 10 (x64)	Windows 8.1, 10 (x64), Windows 11	Windows 8.1, 10 (x64), Windows 11	Windows 8.1, 10 (x64), Windows 11
Recommended computer requirements	Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with 8+ GB VRAM, CUDA 6.0+	Intel Core i7 or i9, 32 GB RAM, GPU with 2 GB VRAM	Intel Core i7 or i9, 32 GB RAM, GPU with 2 GB VRAM	Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with 8+ GB VRAM, CUDA 6.0+	Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with at least 3 GB VRAM, CUDA 3.5+	Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with at least 3 GB VRAM, CUDA 3.5+	Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with at least 3 GB VRAM, CUDA 3.5+	Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with at least 3 GB VRAM, CUDA 3.5+
Minimum computer requirements	HD: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 2 GB VRAM SD: Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM	Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM	Intel Core i5, i7 or i9, 18 GB RAM, GPU with 2 GB VRAM	HD: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 4 GB VRAM SD: Intel Core i5, i7 or i9, 32 GB RAM, GPU with 2 GB VRAM A computer is needed only for data processing. Scanning does not require a computer.	Intel Core i5, i7 or i9, 32GB RAM, GPU with 2 GB VRAM	HD: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 2 GB VRAM SD: Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM	HD: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 2 GB VRAM SD: Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM	HD: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 2 GB VRAM SD: Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM
Output formats
3D mesh	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB
CAD	STEP, IGES, X_T	STEP, IGES, X_T	STEP, IGES, X_T	STEP, IGES, X_T	STEP, IGES, X_T	STEP, IGES, X_T	STEP, IGES, X_T	STEP, IGES, X_T
Measurements	CSV, DXF, XML	CSV, DXF, XML	CSV, DXF, XML	CSV, DXF, XML	CSV, DXF, XML	CSV, DXF, XML	CSV, DXF, XML	CSV, DXF, XML
Power source and dimensions
Power source	AC power or external battery pack	AC power or external battery pack	AC power or external battery pack	Built-in exchangeable battery, optional AC power	AC power	Internal Battery 2 × AEB364 internal, rechargeable Li-Ion batteries, up to 4 hours	Li-ion battery	Li-ion battery
Dimensions, H×D×W	262 × 158 × 63 mm	262 × 158 × 63 mm	190 × 140 × 130 mm	231 × 162 × 230 mm	290 × 290 × 340 mm		520 × 430 × 250 mm	870 × 230 × 170 mm
Weight	0.9 kg / 2 lb	0.9 kg / 2 lb	0.8 kg / 1.8 lb	2.6 kg / 5.7 lb	12 kg / 2		5.35 kg / 11.7 lbs,	12 kg / 26.5 lb
