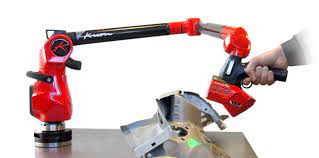

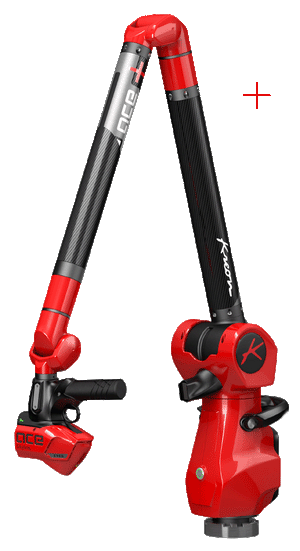

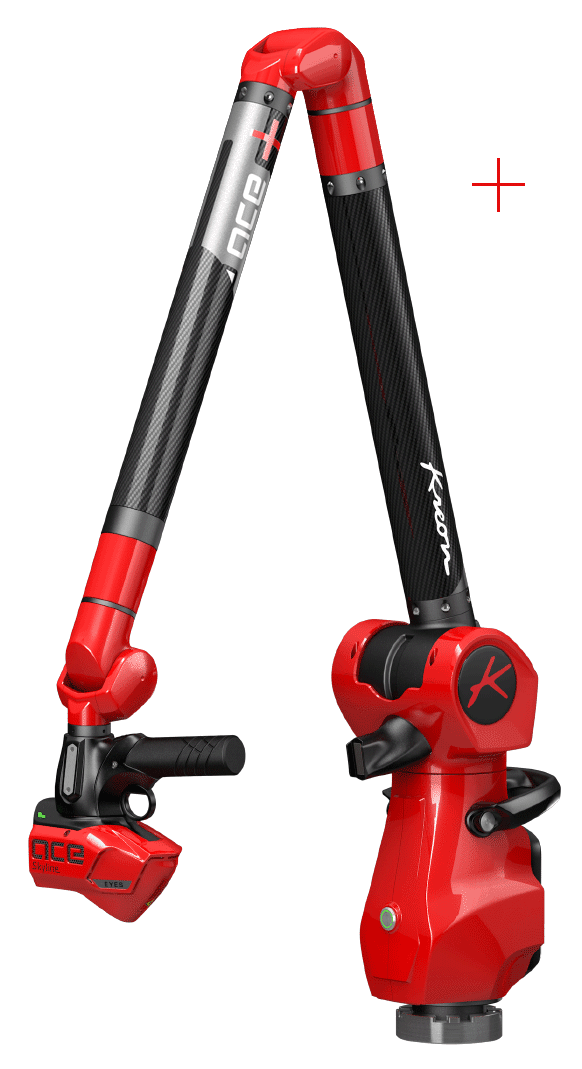

The ACE+ arm is our new 3D measuring solution for the most challenging parts. With unprecedented levels of precision, it satisfies all digital needs, for both scanning and probing.
The new ACE+ rounds off our range. The ACE arm continues to be available.
| Arm model | E Uni | P Size | P Form | L Dia | SPAT |
| Ace+7-25 | 0.029 mm | 0.012 mm | 0.022 mm | 0.045 mm | 0.025 mm |
| Ace+7-30 | 0.052 mm | 0.017 mm | 0.030 mm | 0.074 mm | 0.039 mm |
| Ace+7-35 | 0.063 mm | 0.021 mm | 0.037 mm | 0.089 mm | 0.045 mm |
| Ace+7-40 | 0.076 mm | 0.026 mm | 0.042 mm | 0.105 mm | 0.054 mm |
| Ace+7-45 | 0.103 mm | 0.040 mm | 0.051 mm | 0.114 mm | 0.067 mm |
| Arm model | E Uni | P Size | P Form | L Dia | SPAT |
| Ace+6-25 | 0.026 mm | 0.009 mm | 0.017 mm | 0.037 mm | 0.021 mm |
| Ace+6-30 | 0.039 mm | 0.014 mm | 0.024 mm | 0.047 mm | 0.030 mm |
| Ace+6-35 | 0.052 mm | 0.017 mm | 0.031 mm | 0.063 mm | 0.036 mm |
| Ace+6-40 | 0.063 mm | 0.022 mm | 0.038 mm | 0.080 mm | 0.044 mm |
| Ace+6-45 | 0.073 mm | 0.025 mm | 0.043 mm | 0.093 mm | 0.059 mm |

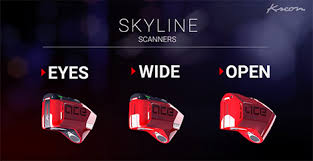

| Ace Skyline specifications | ||||||
|---|---|---|---|---|---|---|
| ACE | ACE+ | |||||
| Arm model | Skyline Eyes | Skyline Wide | Skyline Open | Skyline Eyes | Skyline Wide | Skyline Open |
| Ace-7-20 | 0.040 mm | 0.044 mm | 0.046 mm | |||
| Ace-7-25 | 0.046 mm | 0.050 mm | 0.052 mm | 0.042 mm | 0.046 mm | 0.049 mm |
| Ace-7-30 | 0.061 mm | 0.063 mm | 0.065 mm | 0.052 mm | 0.056 mm | 0.059 mm |
| Ace-7-35 | 0.076 mm | 0.079 mm | 0.081 mm | 0.066 mm | 0.071 mm | 0.073 mm |
| Ace-7-40 | 0.088 mm | 0.099 mm | 0.102 mm | 0.077 mm | 0.081 mm | 0.084 mm |
| Ace-7-45 | 0.120 mm | 0.130 mm | 0.132 mm | 0.095 mm | 0.104 mm | 0.110 mm |
