Artec Leo Premium Pack Education

Artec Leo Premium Pack Education

$46,970.00

Contact Us

Artec Leo Premium Pack for Education Includes:

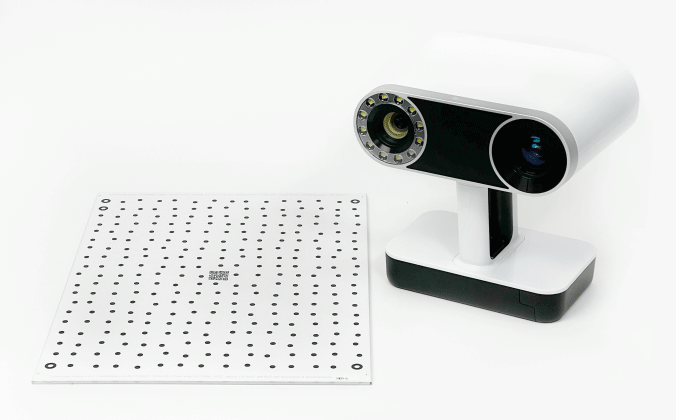

Artec Leo
Hard Case

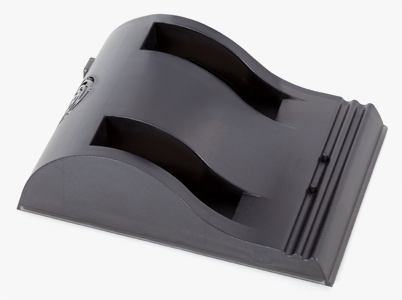

Battery Charger

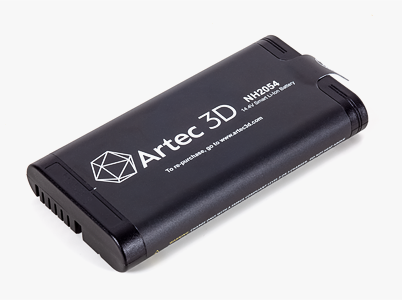

Batteries (2)
Extended warranty x 3 (5 years in total),
Artec Studio - Artec Studio - pack of 20 lifetime licenses, 5 years

A smart decision for education and research

3D scanning is an effective and innovative approach to gathering, presenting and analyzing 3D data for education and research purposes. It allows for absolute freedom of creativity and endless possibilities, thanks to the the most advanced and versatile 3D scanning solutions on the market today. With a wide range of Artec 3D scanning products available for purchase at very attractive prices, you are guaranteed to find the best options to create the most seamless workflow possible, whether you are teaching the future generation of engineers, doctors or astronauts, or conducting life-altering research. What’s more, all of the innovative Artec 3D scanners are compatible with the top-of-the-range CAD, CAM and 3D modelling software to ensure access to the most advanced tools and algorithms, developed specifically to ensure you can achieve more than you ever thought possible.

If you are looking for an innovative and captivating teaching solution, look no further! Artec 3D scanners, paired with advanced 3D scanning software, offer a new, fun and interactive learning experience. With the ability to quickly capture 3D data from almost any object, these tools are a great way to make sure that teaching will be cutting edge and interactive.

Artec 3D scanning solutions are designed to be versatile, powerful and easy to use. Thanks to their many automated features, including autopilot mode and powerful tracking, even small children can use the devices to make high resolution 3D models.

3D scanning in the classroom encourages «hands-on» learning by bringing any object to life, ensuring maximum engagement in the process. Visualise complex concepts and create an unforgettable experience for students with the newest, most advanced 3D scanning technologies. Architecture, engineering, medicine, art, design and CGI — whatever the subject, using 3D scanning makes it more real and interesting, boosting knowledge and creativity to the max.

And most important of all, 3D scanning in schools and universities gives students the unique opportunity to acquire new, in-demand skills, broadening their opportunities and giving them a head start in the workplace.

It is no secret that research plays a vital part in developing innovative and groundbreaking concepts. More and more educational establishments are investing time and money into the research process. Providing top-of-the- range 3D scanning technologies for over a decade, Artec 3D understands the importance of having only the best measurement tools and making the most out of them.

All of the 3D scanners in our range are designed to ensure that there is no room for error, whatever your research area. Ease of use, precision and versatility of our professional 3D solutions guarantee accurate results that can be used for reverse engineering, quality control, manufacturing, heritage preservation, healthcare, CGI, art, design and much more.

Suitable for courses such as

Engineering

Orthotics and Prosthetics

CGI

Heritage Preservation

Technical	Eva	Eva Lite	Space Spider	Leo	Micro	Ray II	Metrology Kit Professional	Metrology Kit Entry
Scanner type	Handheld	Handheld	Handheld	Handheld	Desktop	Tripod	Mobile	Mobile
3D point accuracy , up to	0.1 mm	0.1 mm	0.05 mm	0.1 mm	0.01 mm	1.9 mm @10 m Angular 18" (0.87 mm @ 10 m)	0.002 mm + 0.005 mm/m (RMS) 0.003 mm + 0.007 mm/m (3 sigma)	0.004 mm + 0.006 mm/m (RMS) 0.005 m + 0.009 mm/m (3 sigma)
3D resolution , up to	0.2 mm	0.5 mm	0.1 mm	0.2 mm	0.029 mm	3 / 6 / 12 mm @ 10 m	30.3 megapixels (6720 × 4480)	20.2 megapixels (5472 × 3648)
3D accuracy over distance, up to	0.1 mm + 0.3 mm/m	0.1 mm + 0.3 mm/m	0.05 mm + 0.3 mm/m	0.1 mm + 0.3 mm/m	—	Range noise: 0.4 mm @ 10 m 0.5 mm @20 m	0.003 mm + 0.007 mm/m (3 sigma)	0.005 mm + 0.009 mm/m (3 sigma)
HD Mode	Yes	No	N/A	Yes	N/A	HDR: Automatic, 5 brackets	N/A	N/A
Hybrid geometry and texture tracking	Yes	No	Yes	Yes	N/A	N/A	Targets	Targets
Data processing algorithms	Geometry and texture based	Geometry based	Geometry and texture based	Geometry and texture based	Geometry based	Real time registration, Automatic removal of moving objects, Check & Adjust	__	__
Working distance	0.4 – 1 m	0.4 – 1 m	0.2 – 0.3 m	0.35 – 1.2 m	—	0.5 to 130 m	__	__
Volume capture zone	61,000 cm³	61,000 cm³	2,000 cm³	160,000 cm³	324 cm³	360 degrees	65 × 46°	__
Linear field of view, H×W @ closest range	214 × 148 mm	214 × 148 mm	90 × 70 mm	244 × 142 mm	—	__	__	__
Linear field of view, H×W @ furthest range	536 × 371 mm	536 × 371 mm	180 × 140 mm	838 × 488 mm	—	__	__	__
Angular field of view, H×W	30 × 21°	30 × 21°	30 × 21°	38.5 × 23°	—	__	__	__
Ability to capture texture	Yes	No	Yes	Yes	Yes	Yes	Yes	Yes
Texture resolution	1.3 mp	—	1.3 mp	2.3 mp	6.4 mp	36 mp	30.3 mp	20.2 mp
Colors	24 bpp	—	24 bpp	24 bpp	24 bpp	432 MPx raw data	30.3 megapixels (6720 × 4480)	20.2 megapixels (5472 × 3648)
3D reconstruction rate for real-time fusion, up to	16 fps	16 fps	7.5 fps	22 fps	—	__	__	__
3D reconstruction rate for 3D video recording, up to	16 fps	16 fps	7.5 fps	44 fps	—	__	__	__
3D reconstruction rate for 3D video streaming, up to	—	—	—	80 fps	—	__	Up to 8 images per second	Up to 4 images per second
Data acquisition speed, up to	18 mln points/s	2 mln points/s	1 mln points/s	35 mln points/s	1 mln points/s	Up to 2,000,000 pts/sec
3D exposure time	0.0002 s	0.0002 s	0.0002 s	0.0002 s	Customizable	__	__	__
2D exposure time	0.00035 s	0.00035 s	0.0002 s	0.0002 s	Customizable	__	__	__
3D light source	Flashbulb	Flashbulb	Blue LED	VCSEL	Blue LED	36 MP 3-camera system captures 432 MPx raw data for calibrated 360° × 300° spherical image	Canon EOS R	Canon EOS 6D
2D light source	White 12 LED array	White 12 LED array	White 6 LED array	White 12 LED array	RGB LED	LiDAR	White-light flash	White-light flash
Position sensors	—	—	—	Built-in 9 DoF inertial system	—	Visual Inertial System (VIS), Altimeter, compass, and Global Navigation Satellite System.
Display/touchscreen	USB streaming through external computer	USB streaming through external computer	USB streaming through external computer	Integrated 5.5" half HD, CTP. Optional Wi-Fi/Ethernet video streaming to external device	USB streaming through external computer	Onboard screen	__	__
Multi-core processing	On external computer	On external computer	On external computer	Embedded processors: NVIDIA® Jetson™ TX2 Quad-core ARM® Cortex®-A57 MPCore Processor NVIDIA Maxwell™ 1 TFLOPS GPU with 256 NVIDIA® CUDA® Cores	On external computer	On external computer	__	__
Interface	1 × USB 2.0, USB 3.0 compatible	1 × USB 2.0, USB 3.0 compatible	1 × USB 2.0, USB 3.0 compatible	Wi-Fi, Ethernet	USB 3.0	Wireless: Integrated wireless LAN (802.11 b/g/n)	__	__
Internal hard drive	—	—	—	512 GB SSD	—	AS256, 256 GB/USB 3.0 flash drive	__	__
Computer requirements	Visit the Artec Support Center for detailed hardware requirements.	Visit the Artec Support Center for detailed hardware requirements.	Visit the Artec Support Center for detailed hardware requirements.	Visit the Artec Support Center for detailed hardware requirements.	Visit the Artec Support Center for detailed hardware requirements.	Visit the Artec Support Center for detailed hardware requirements.	Visit the Artec Support Center for detailed hardware requirements.	Visit the Artec Support Center for detailed hardware requirements.
Supported OS	Windows 8.1, 10 (x64), Windows 11	Windows 8.1, 10 (x64), Windows 11	Windows 8.1, 10 (x64), Windows 11	Scanning: No computer required Data processing: Windows 8.1, 10 (x64), Windows 11	Windows 10 (x64)	Windows 8.1, 10 (x64), Windows 11	Windows 8.1, 10 (x64), Windows 11	Windows 8.1, 10 (x64), Windows 11
Recommended computer requirements	Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with 8+ GB VRAM, CUDA 6.0+	Intel Core i7 or i9, 32 GB RAM, GPU with 2 GB VRAM	Intel Core i7 or i9, 32 GB RAM, GPU with 2 GB VRAM	Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with 8+ GB VRAM, CUDA 6.0+	Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with at least 3 GB VRAM, CUDA 3.5+	Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with at least 3 GB VRAM, CUDA 3.5+	Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with at least 3 GB VRAM, CUDA 3.5+	Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with at least 3 GB VRAM, CUDA 3.5+
Minimum computer requirements	HD: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 2 GB VRAM SD: Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM	Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM	Intel Core i5, i7 or i9, 18 GB RAM, GPU with 2 GB VRAM	HD: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 4 GB VRAM SD: Intel Core i5, i7 or i9, 32 GB RAM, GPU with 2 GB VRAM A computer is needed only for data processing. Scanning does not require a computer.	Intel Core i5, i7 or i9, 32GB RAM, GPU with 2 GB VRAM	HD: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 2 GB VRAM SD: Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM	HD: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 2 GB VRAM SD: Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM	HD: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 2 GB VRAM SD: Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM
Output formats
3D mesh	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB
CAD	STEP, IGES, X_T	STEP, IGES, X_T	STEP, IGES, X_T	STEP, IGES, X_T	STEP, IGES, X_T	STEP, IGES, X_T	STEP, IGES, X_T	STEP, IGES, X_T
Measurements	CSV, DXF, XML	CSV, DXF, XML	CSV, DXF, XML	CSV, DXF, XML	CSV, DXF, XML	CSV, DXF, XML	CSV, DXF, XML	CSV, DXF, XML
Power source and dimensions
Power source	AC power or external battery pack	AC power or external battery pack	AC power or external battery pack	Built-in exchangeable battery, optional AC power	AC power	Internal Battery 2 × AEB364 internal, rechargeable Li-Ion batteries, up to 4 hours	Li-ion battery	Li-ion battery
Dimensions, H×D×W	262 × 158 × 63 mm	262 × 158 × 63 mm	190 × 140 × 130 mm	231 × 162 × 230 mm	290 × 290 × 340 mm		520 × 430 × 250 mm	870 × 230 × 170 mm
Weight	0.9 kg / 2 lb	0.9 kg / 2 lb	0.8 kg / 1.8 lb	2.6 kg / 5.7 lb	12 kg / 2		5.35 kg / 11.7 lbs,	12 kg / 26.5 lb
