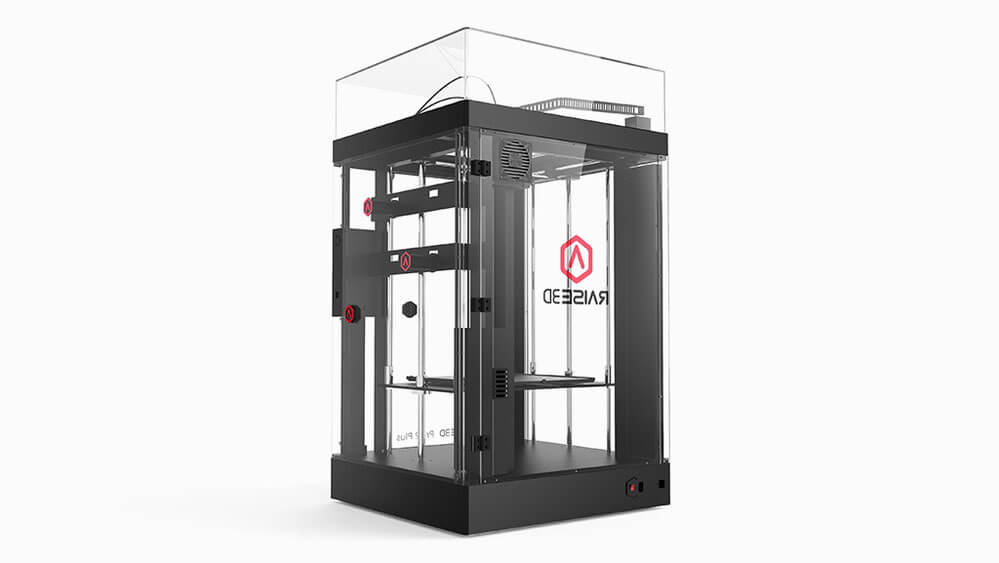

Meet the Pro2 Series
Dual Extruder 3D Printers from Raise3D
Raise3D’s award-winning Pro2 Series is recognized as a benchmark and gold standard for professional 3D printing applications and 24/ 7 reliability. From Raise3D’s Pro2 Series is the Pro2 and the Pro2 Plus, dual extruder 3D printers with high-resolution, for manufacturing and rapid-prototyping projects of varying sizes.
The Pro2 Series has a metal build plate for even heat distribution, along with a full metal frame for smooth movement and precise positioning, and is compatible with a variety of 3D printing materials. The Pro2 Series is complete with precaution measures to save work, a 7-inch touch screen for efficient monitoring of the 3D printing process, and a HEPA air filter. As with all 3D printers from Raise3D, the Pro2 Series can pair with: ideaMaker, a 3D slicer software, ideaMaker Library, a platform for sharing 3D printer files with those in the Raise3D community, and RaiseCloud, a cloud-based 3D printing management platform. Finally, as with all Raise3D products, the Pro2 Series is both ISO 9001 and ISO 14001 certified.
Pro2 Series Technical Specifications
GENERAL
Build Volume (W × D × H)
Single Extrusion Print: 12 × 12 × 23.8 inch/ 305 × 305 × 605 mm
Dual Extrusion Print: 11 × 12 × 23.8 inch/ 280 × 305 × 605 mm
Machine Size (W × D × H)
24.4 × 23.2 × 43.5 inch/ 620 × 590 × 1105 mm
Print Technology
FFF
Print Head System
Dual-head with electronic lifting system
Filament Diameter
1.75 mm
XYZ Step Size
0.78125, 0.78125, 0.078125 micron
Print Head Travel Speed
30–150 mm/s
Build Plate
Heated aluminum build plate with magnetic holding
Max Build Plate Temperature
110ºC
Heated Bed Material
Silicone
Build Plate Leveling
Pre-calibrated leveling
Filament Run-out Sensor
Available
Supported Materials
PLA/ ABS/ HIPS/ PC/ TPU/ TPE/ PETG/ ASA/ PP/ PVA/ Nylon/ Glass Fiber Infused/ Carbon Fiber Infused/ Metal Fill/ Wood Fill
Layer Height
0.01-0.25mm
Nozzle Diameter
0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm (Available)
Max Nozzle Temperature
300ºC
Connectivity
Wi-Fi, LAN, USB port, Live camera
Noise Emission (Acoustic)
＜50 dB(A) when building
Operating Ambient Temperature
15-30ºC, 10-90% RH non-condensing
Storage Temperature
-25℃ to +55℃, 10-90% RH non-condensing
Filter
HEPA filter with activated charcoal
Technical Certifications
CB, CE, FCC, RoHS
Net Weight
50.2 kg
59.3 kg
Gross Weight (Carton Only)
62.7 kg
71.8 kg
Gross Weight (Carton with Pallet)
70.5 kg
79.6 kg
ELECTRICAL
Power Supply Input
100-240 V AC, 50/ 60 Hz 230 V @ 3.3 A
Power Supply Output
24 V DC, 600 W
SOFTWARE
Slicing Software
ideaMaker
Supported File Types
STL/ OBJ/ 3MF/ OLTP
Supported OS
WINDOWS/ macOS/ Linux
Machine Code Type
GCODE
PRINTER CONTROLLER
User Interface
7-inch Touch Screen
Network
Wi-Fi, Ethernet
Power Loss Recovery
Available
Screen Resolution
1024 × 600
Motion Controller
Atmel ARM Cortex M7.400 MHZ FPU
Logic Controller
NXP i.MX6, Quad core 1 GHz ARM processor
Memory
1 GB
Onboard Flash
16 GB
OS
Embedded Linux
Ports
USB 2.0 × 2, Ethernet × 1
